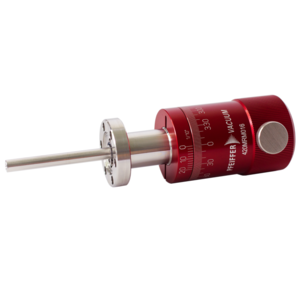

Magnetically coupled rotary feedthrough, manual
- Shaft connection with threaded hole (vented)
- Magnetic coupling with samarium-cobalt magnets
- Stainless steel ball bearing with dry lubrication suitable for UHV
- Hermetically sealed, suitable for UHV
- Fixing brake
-
420MRM016
- Shaft connection with threaded hole (vented)
- Magnetic coupling with samarium-cobalt magnets
- Stainless steel ball bearing with dry lubrication suitable for UHV
- Hermetically sealed, suitable for UHV
- Fixing brake
- Delivery time: 1-3 days
Global-No. 2000041047
| Connection flange | DN 16 CF |
|---|---|
| Actuator | Manual |
| Bakeout temperature max. | ≤ 200 °C |
| Axial force | ≤ 75 N |
| Operating temperature | ≤ 60 °C |
| Tightness | 1 · 10-11 Pa m³/s |
| Torque | 0.6 N m |
| Angle of rotation | 360° |
| Pressure range | 1E-10 hPa – 5E2 hPa over pressure |
| Thread | M 3 |
| Thread depth | 6 mm |
| Max. load vertical to axis (at end of shaft) | 80 N |
| Scale | (DN 40) Accuracy of reading 1/10° |
| Ambient temperature | 10 – 50 °C |
| Shaft connection | With threaded hole, vented: DN 16: M3 x 6 | DN 40: M5 x 10 |
| mm | |
|---|---|
| A | 50 |
| B | 93 |
| C | 6 |
| D | 40 |
